A project for Straight Tube Heat Exchanger for the Union Paper Mills in Dubai, Along with project & design specifications the heat exchanger design to comply with ASME VIII DIV.1. The heat exchanger designed with 100% Radiography, 100% DPI & 100% PMI, Finished with a pickle and passivated surface finish giving a high-quality finish.

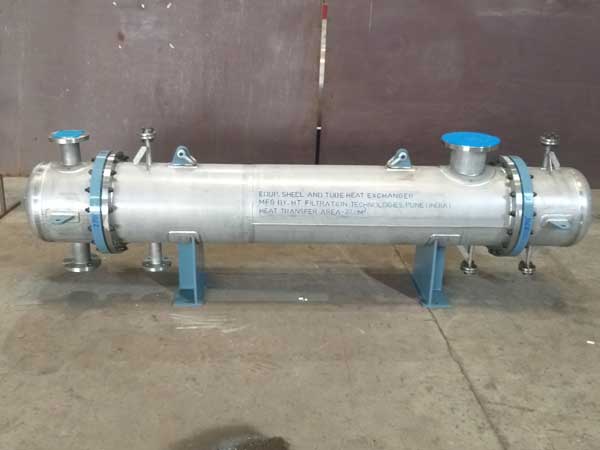

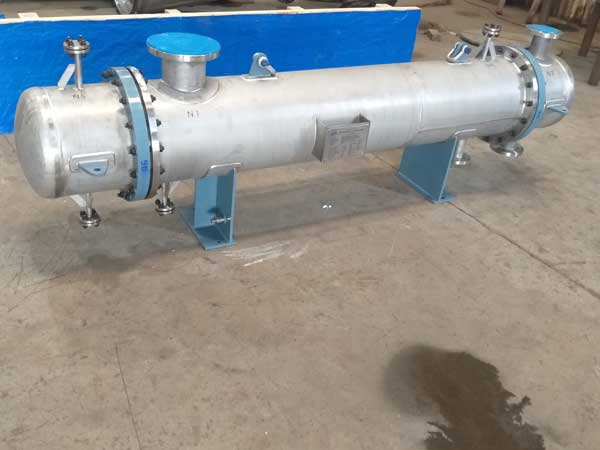

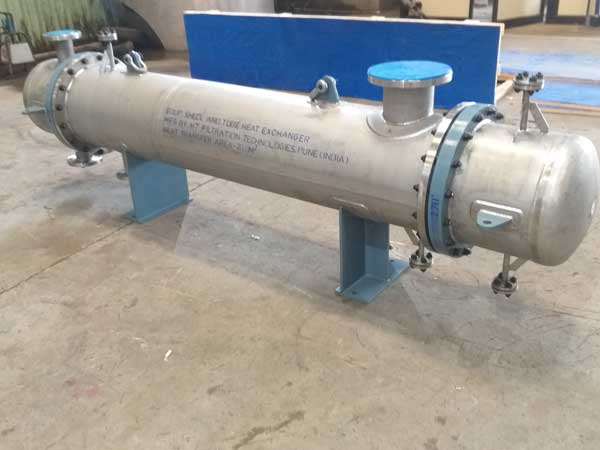

Straight Tube Heat Exchanger

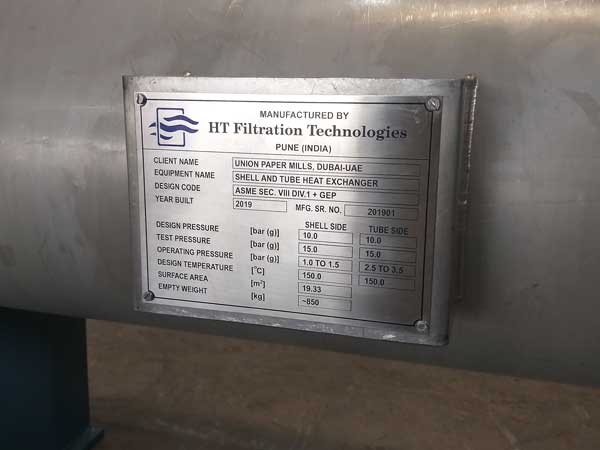

Project Overview
Directive
- ASME Standard
Heat Transfer Area
- 19.33 m2
Contents
- Steam / Cooling Water
Material
- SS316L
Design Code
- ASME VIII Div.1
Size
- ID 400 x 3000mm Overall
Design Conditions
- 3.5 Bar @ 150°C to -20°C
