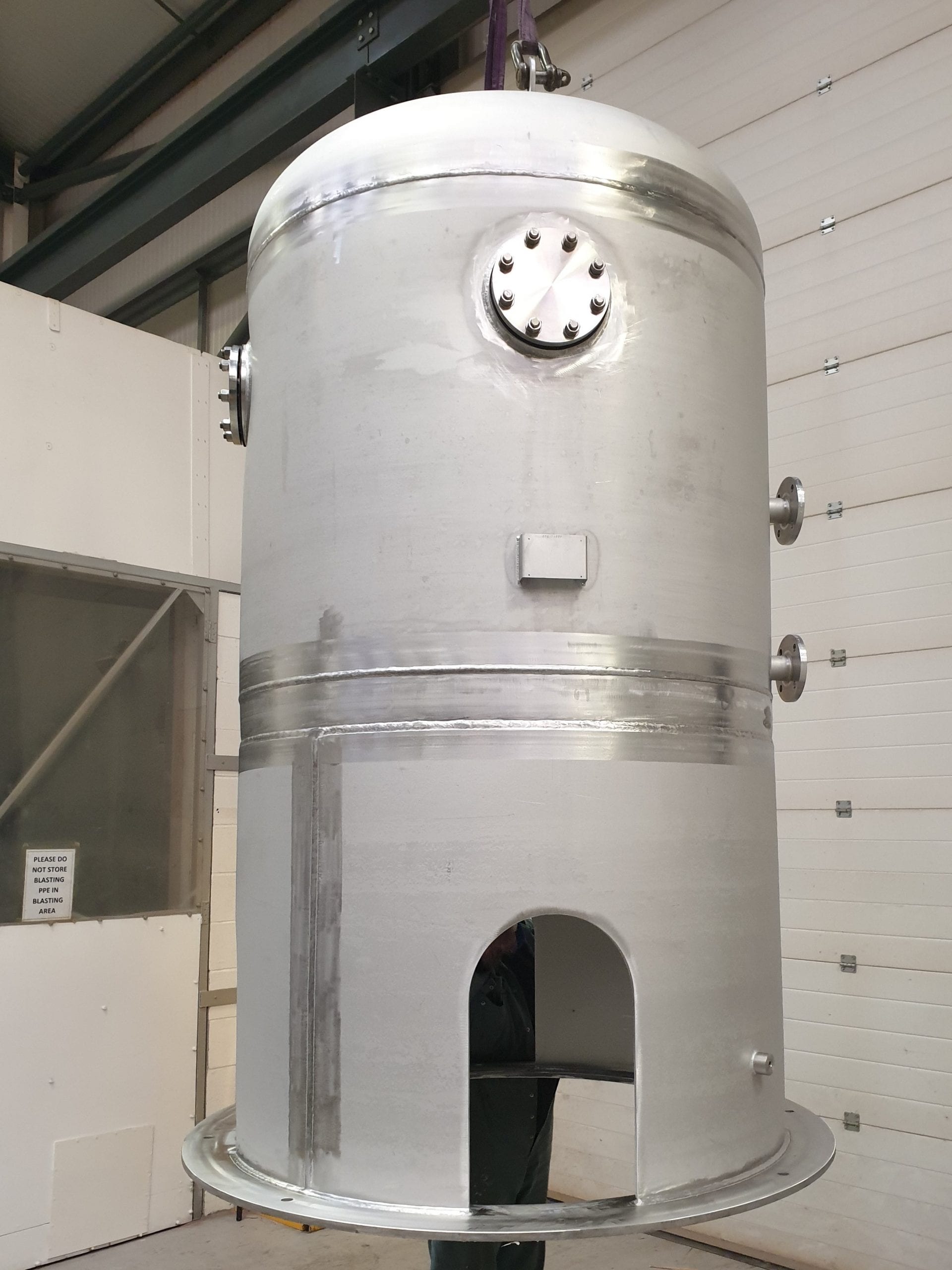

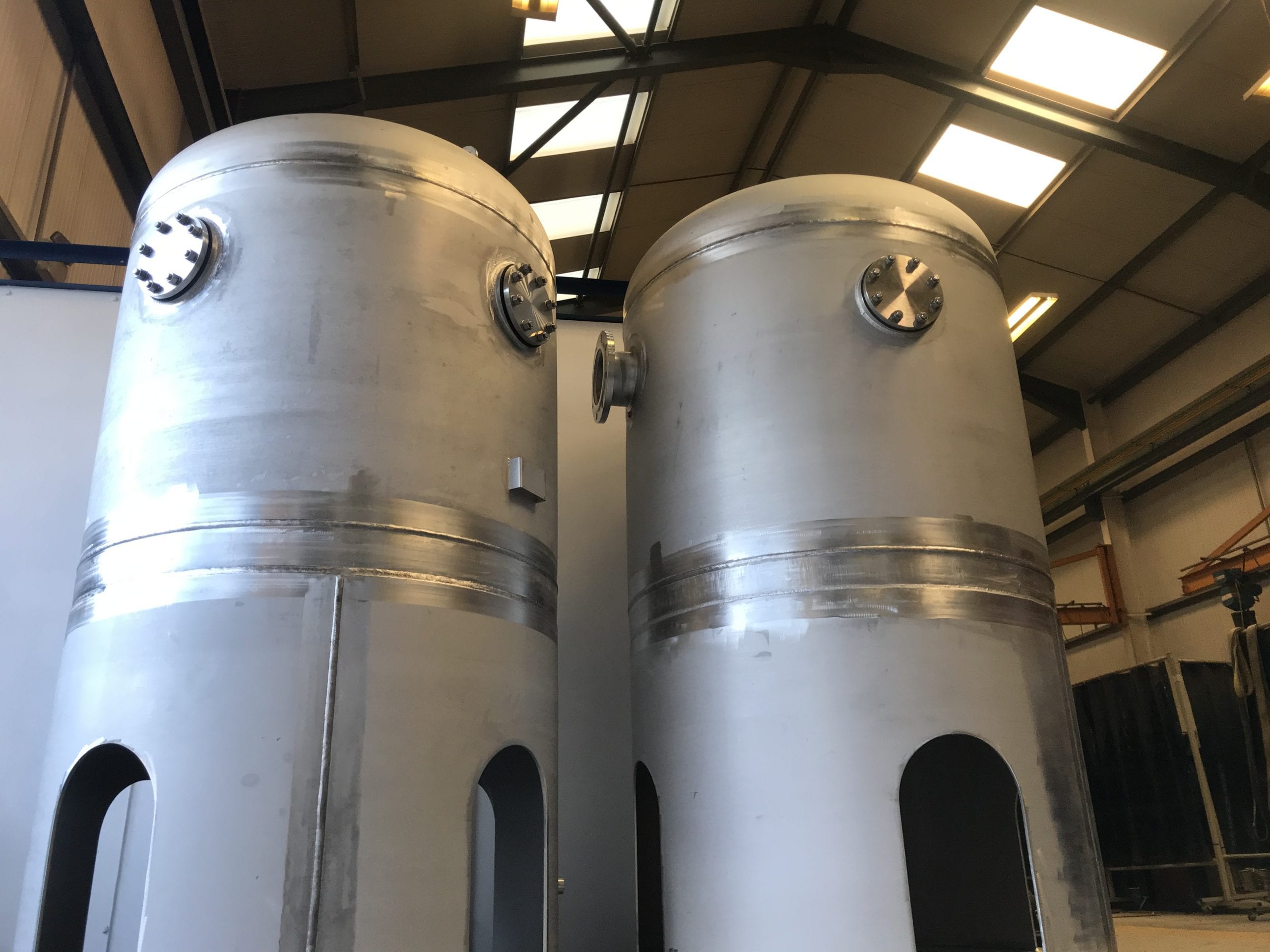

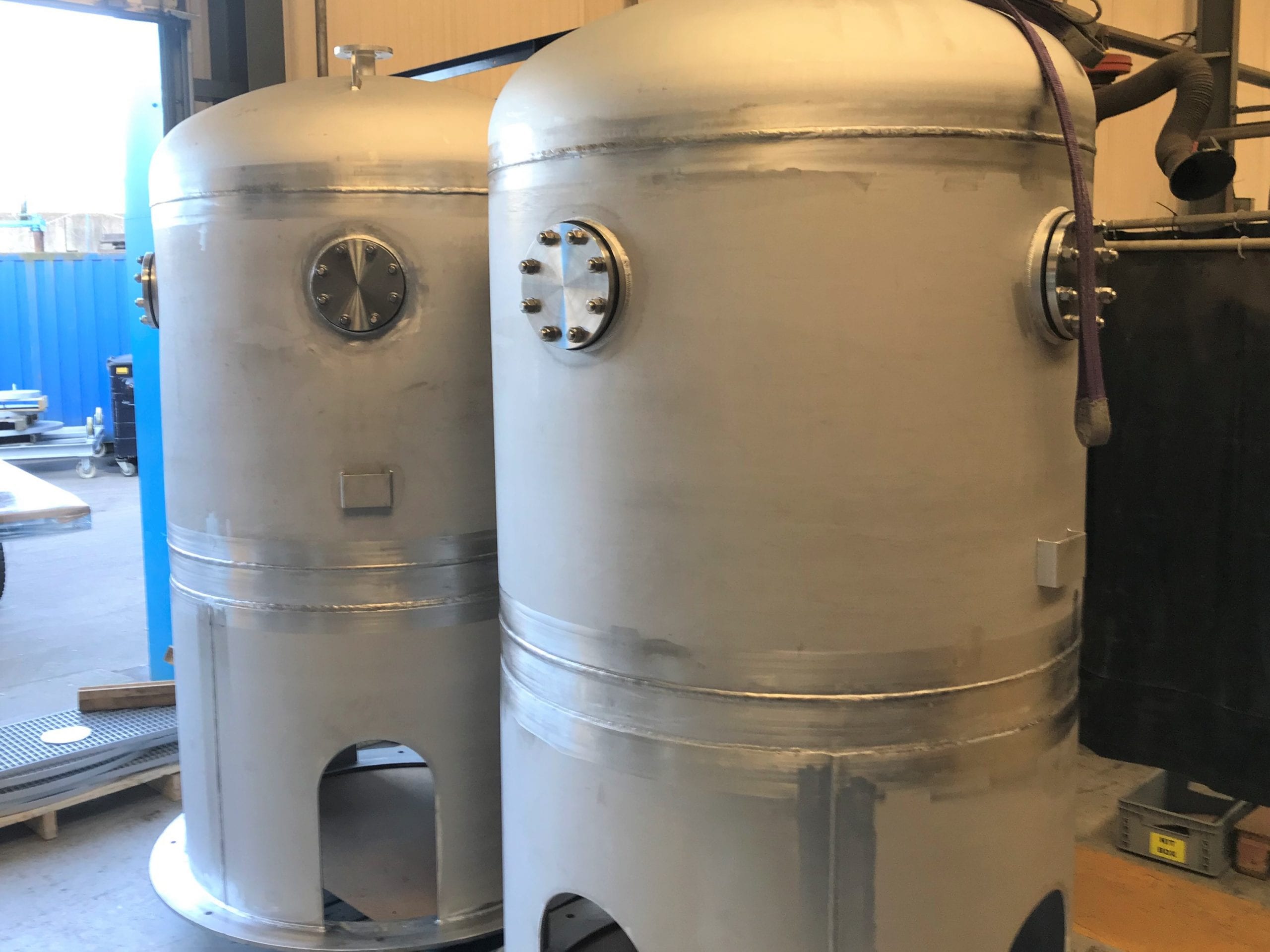

A 2000 Litre Coolant Break Tank to be used in the Renewable/ Clean Energy Industry. Designed and manufactured in house to specific project specifications, considering Nozzle, Seismic and Wind Loading. Radiography and DPI were carried out and completed with a Pickle and passivated surface finish.
Coolant Break Tank – 2000 Litre – Stainless Steel 304
Project Overview
Directive
- ASME Standard
Volume
- 2000 Litre
Contents
- Water/ Glycol / Air
Material
- Stainless steel 304/L
Design Code
- ASME VIII Div.1
Size
- 1200mm ø x 2300mm Overall
Design Conditions
- 0.5 Bar @ 65°C to -20°C
